Htek UC800 Series
Overview
From Basic IP Phones to full color displays, the Htek UC800 Series has the right communication tools for your business needs.

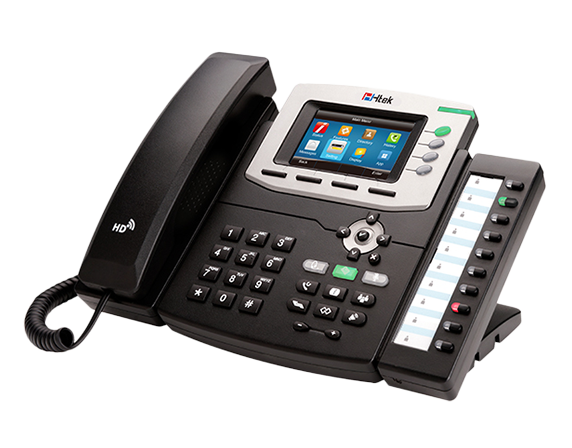

Htek UC862
● 3.5”TFT-LCD, 480 x 320 pixel, 262K colors
● 47 keys including 14 programmable keys
● SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
● Support Auto-provision via TFTP / FTP / HTTP /HTTPS
● WAN Port: 10/100/1000 RJ-45 for Internet
● TFTP/DHCP/PPPoE client
● Support Power over Ethernet(PoE)
● Hot-desking, Tone scheme, Volume control
● Broad and Deep Interoperability

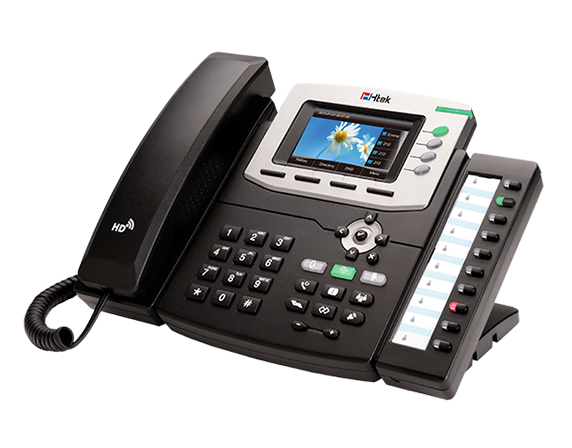

Htek UC860P
● 3.5”TFT-LCD, 480 x 320 pixel, 262K colors
● 47 keys including 14 programmable keys
● Support Auto-provision via TFTP / FTP / HTTP /HTTPS
● Support Power over Ethernet(PoE)
● WAN Port: 10/100 RJ-45 for Internet
● SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
● RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone
● G.722. HD Codec, HD speaker, HD handset
● TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP
Htek UC842
● 3.5”TFT-LCD, 480 x 320 pixel, 262K colors
● Keys: 37 keys including 4 programmable keys
● LAN Port: 10/100/1000 RJ-45 for PC
● Ethernet: Dual-port Gigabit Ethernet ports
● WAN Port: 10/100/1000 RJ-45 for Internet
● SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
● G.722. HD Codec, HD speaker, HD handset
● G.711 µ-law/A-law, G.723.1, G.726, G.729A/B.
● Caller ID display, DND, Auto-answer, 5-Way Conference
Htek UC840P
● 3.5”TFT-LCD, 480 x 320 pixel, 262K colors
● 37 keys including 4 programmable keys
● Support Auto-provision via TFTP / FTP / HTTP /HTTPS
● Support Power over Ethernet(PoE)
● Power over Ethernet(PoE): IEEE 802.3af (Optional)
● SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
● G.722. HD Codec, HD speaker, HD handset
● Caller ID display, DND, Auto-answer, 5-Way Conference
● Broad and Deep Interoperability
Htek UC806
● 480*320 backlit graphic LCD
● 4 VoIP accounts
● 47 keys including 14 programmable keys
● Support Auto-provision via TFTP / FTP / HTTP /HTTPS
● Dual Ethernet ports
● Multi-language
● Supports Power over Ethernet(PoE)(Optional)
● SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
● G.722. HD Codec, HD speaker, HD handset
Htek UC804
● 480*320 backlit graphic LCD
● 3 VoIP accounts
● 37 keys including 4 programmable keys
● Support Auto-provision via TFTP / FTP / HTTP /HTTPS
● Dual Ethernet ports
● Multi-language
● Supports Power over Ethernet(PoE)(Optional)
● SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
● G.722. HD Codec, HD speaker, HD handset
Htek UC803
● 192*64 backlit graphic LCD
● Multi-language
● 34 keys including 7 programmable keys
● Support Power over Ethernet(PoE)
● 2 VoIP accounts
● Wall Mountable
● Support Auto-provision via TFTP / FTP / HTTP /HTTPS
● SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
● G.722. HD Codec, HD speaker, HD handset
Htek UC802
● 132*48 graphic LCD wihtout backlight
● Multi-language
● 34 keys including 7 programmable keys
● Support Power over Ethernet(PoE)
● 2 VoIP accounts
● Wall Mountable
● 2 line keys 5 BLF keys 3 function keys
● Support Auto-provision via TFTP / FTP / HTTP /HTTPS
● G.722. HD Codec, HD speaker, HD handset
